Wanding YC DIESEL series, the engine is produced by Guangxi Yuchai Ship Electric Power Co., Ltd. The engine body and other main structures have been tested for a long time, China's local comprehensive performance - the most cost-effective power brand , product cover power range 20KVA~3000KVA.
The cylinder head is made of high-quality alloy cast iron to ensure the high reliability of the whole machine. Optimized and verified by YC DIESEL's advanced combustion development technology, it has the characteristics of energy saving, environmental protection, high reliability, strong loading capacity and good maintainability. The structure of one cylinder and one cover has a maintenance window on the side of the machine body, which is convenient for maintenance.
Product Parameters
WANDING YC DIESEL series main technical parameter list (T3) | |||||||||||
YC DIESEL series | Unit power KW | Diesel model | Diesel power prime/stand-by KW | Number of cylinder | Bore*Stroke | Total displacement (L) | Minimum Fuel Extinction Rate g/(kW.h) | Oil capacity(L) | Compression ratio | Weight (kg) | Unit Dimensions (mm) |
WD-400 | 400 | YC6K660-D30 | 441/485 | 6 | 129*165 | 12. 94 | 205 | 32 | 17.5:1 | 3000 | 3150*1280*1750 |
WD-400 | 400 | YC6T660-D31 | 441/485 | 6 | 145*165 | 16. 35 | 195 | 52 | 14:1 | 3378 | 3560*1280*1830 |
WD-450 | 450 | YC6TD780-D31 | 520/572 | 6 | 152*180 | 19.6 | 195 | 52 | 14:1 | 3916 | 3560*1430*1940 |
WD-500 | 500 | YC6TD840-D31 | 561/616 | 6 | 152*180 | 19.6 | 195 | 52 | 14:1 | 3920 | 3600*1500*1870 |
WD-600 | 600 | YC6TD900-D31 | 605/665 | 6 | 152*180 | 19.6 | 195 | 52 | 14:1 | 4130 | 3600*1470*1900 |
WD-600 | 600 | YC6TD1000-D30 | 668/735 | 6 | 152*180 | 19.6 | 195 | 55 | 14:1 | 4500 | 3600*1470*1900 |
WD-600 | 600 | YC6C1020-D31 | 680/748 | 6 | 200*210 | 39. 58 | 195 | 180 | 13.5:1 | 6500 | 4300*1700*2400 |
WD-640 | 640 | YC6C1070-D31 | 715/787 | 6 | 200*210 | 39. 58 | 195 | 180 | 13.5:1 | 6500 | 4500*1700*2400 |
WD-728 | 728 | YC6C1220-D31 | 815/897 | 6 | 200*210 | 39.58 | 195 | 180 | 13.5:1 | 9000 | 4500*1700*2400 |
WD-730 | 730 | YC6TH1220-D31 | 815/897 | 6 | 175*195 | 28.14 | 205 | 95 | 15:1 | 8500 | 4300*1700*2400 |
WD-800 | 800 | YC6TH1320-D31 | 880/968 | 6 | 175*195 | 28.14 | 205 | 95 | 15:1 | 8600 | 4300*1700*2400 |
WD-800 | 800 | YC6C1320-D31 | 880/968 | 6 | 200*210 | 39.58 | 195 | 180 | 13.5:1 | 9000 | 4500*1700*2400 |
WD-900 | 900 | YC6C1520-D31 | 1016/1118 | 6 | 200*210 | 39.58 | 195 | 180 | 13.5:1 | 10000 | 4800*1800*2500 |
WD-800 | 800 | YC12VTD1350-D30 | 900/990 | 12 | 152*180 | 39.2 | 205 | 210 | 14:1 | 9000 | 4500*1700*2400 |
WD-900 | 900 | YC12VTD1500-D30 | 1000/1100 | 12 | 152*180 | 39.2 | 205 | 210 | 14:1 | 9000 | 4500*1700*2400 |
WD-1000 | 1000 | YC12VTD1680-D30 | 1120/1230 | 12 | 152*180 | 39.2 | 205 | 210 | 14:1 | 11000 | 5500*1800*2400 |

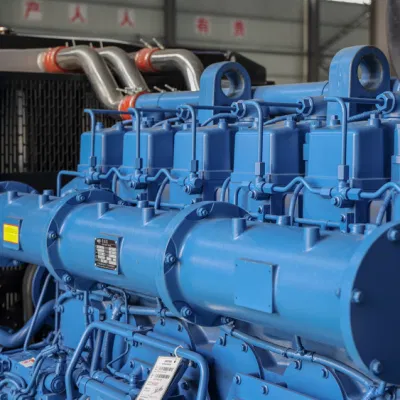

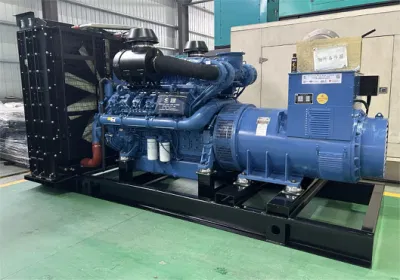

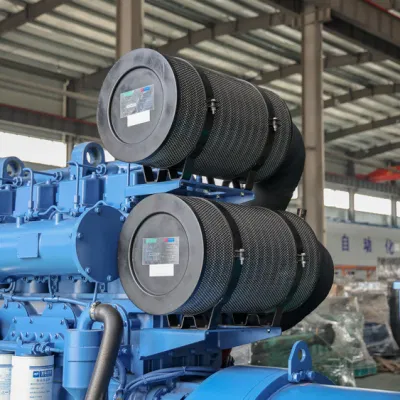

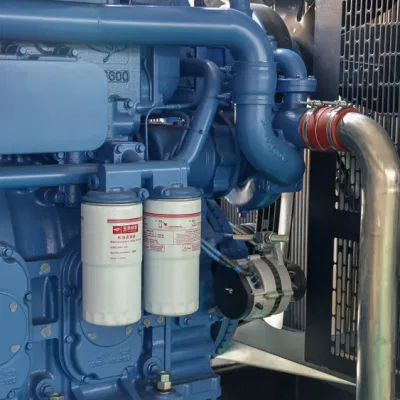

Detailed Pictures
Other Recommended Brand Engine Series
Optional Alternator
Alternators of brands such as Leroy somer, Marathon, and Stamford are optional, and Chinese-made alternators such as WANDING
are also optional. Voltage optional 220V/380V/400V/10500V, single phase or three phase.
