Basic Info.
Model NO.
DCW-28T5
Output Type
AC Three Phase
Speed
1500rmp
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Transport Package
Standard Export Packaging or as Customer Requireme
Specification
2250*1060*1750
Trademark
GTL
Origin
Fujian, China
Production Capacity
1000 Sets / Month
Product Description

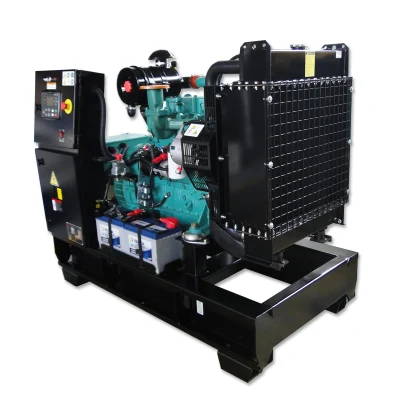

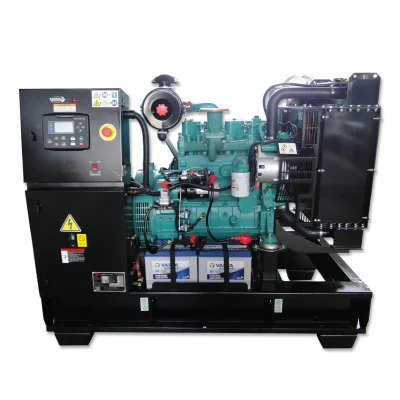

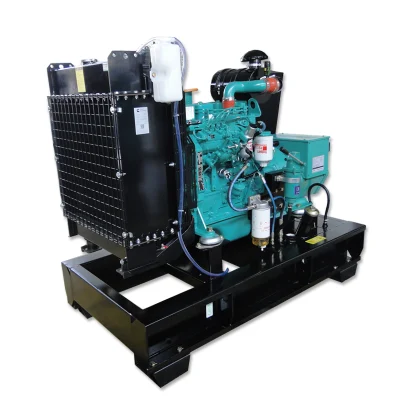

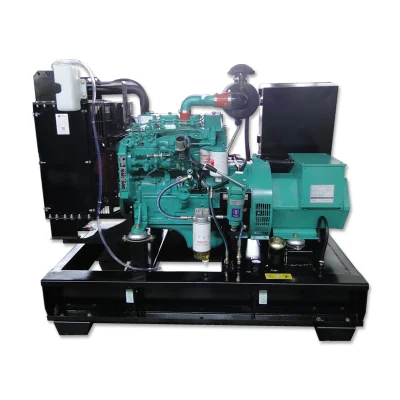

| DCW-28T5 powered by:Cummins 4B3.9-G1 | ||||||||||
| Diesel Genset Features P.F=0.8 3Phase | ||||||||||
| Generating Set Performance | 50Hz | |||||||||
| Service | P.R.P | Standby | ||||||||
| Rated output | kVA | 28 | 30 | |||||||
| Active power output | kW | 22 | 24 | |||||||
| Rated Speed | r.p.m | 1500 | ||||||||
| Standard Voltage | V | 400/230 | ||||||||
| Voltage available | V | 380/220 - 415/240 | ||||||||
| Prime Mover Performance 1500 r.p.m | ||||||||||
| SERVICE | P.R.P | Standby | ||||||||
| Rated output | KW | 24 | 27 | |||||||
| Manufacturer | Cummins | |||||||||
| 4 stroke Diesel Engine - Injection type | Direct | |||||||||
| Aspiration type | Naturally | |||||||||
| Cylinders, number and arrangement | 4 -L | |||||||||
| Bore×Stroke | mm | 102X120 | ||||||||
| Total Displacement | L | 3.9 | ||||||||
| Cooling system | Water | |||||||||
| Lube oil specifications | SAE 15 W 40 | |||||||||
| Compression ratio | 18:1 | |||||||||
| Specific fuel consumption(P.R.P) | L/h | 6.7 | ||||||||
| Specific oil consumption(at full load) | % | <0.1 | ||||||||
| Total coolant capacity | L | 15.2 | ||||||||
| Speed governor | Type | Mechanical | ||||||||
| Lube oil system including sump, filters, etc. | L | 10.9 | ||||||||
| GTL Generator configuration | ||||||||||
| Engine: | Brand new genuine in warranty | |||||||||
| Alternator: | Brand new brushless alternator, IP23, H insulation class. | |||||||||
| Base Frame: | Heavy-duty steel channel base frame. | |||||||||
| Radiator: | With safety guard. | |||||||||
| Vibration Damper | Vibration damper between Engine/Alternator and base frame | |||||||||
| Breaker: | 3-pole output manual circuit breaker as standard, 4 poles for option | |||||||||
| Controller: | Comap AMF9, AMF20, AMF25 for option.DSE702,DSE6020 DSE6120 DSE7320 DSE7420 and other deepsea models, | |||||||||
| Silencer: | Heavy duty industrial type silencer with flexible bellow,elbow. | |||||||||
| Battery: | Varta Brand, high capacity sealed maintenance-free battery c/w battery cables. | |||||||||
| Fuel Tank: | 8 hours base fuel tank, External Daily Fuel Tank for option | |||||||||
| Accessory: | Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc. | |||||||||
| Inquiry Items | ||||||||||
| Before we talk about diesel generators and make an offer for you, and in order to make a good choice for you, please kindly allow me to ask you the following issues and kindly fill in the blanks: | ||||||||||
| Genset parameter | ||||||||||
| Prime power | Standby power | Voltage | Frequency | Phase | Quantity | Another requirement | ||||
| kva | kw | kva | kw | V | 50Hz or 60hz | 1 or 3 phase | set | |||
| Voltage&Frequency | 50hz 380-440/ 190-220/ 220-254 | |||||||||
| 60hz 416-480/ 380-416/ 240-277/ 208-240 | ||||||||||
| Requirement of brand | ||||||||||
| Engine | Alternator | Control Module | ATS(Include or not) | |||||||
| Engine: | Cummins, Perkins, FPT, MTU, Volvo, Doosan,Deutz,Yanmar, Kubota, Chinese brand | |||||||||
| Alternator: | Leroy Somer, Stamford, Marathon, Meccalte, Chinese brand | |||||||||
| Controller: | Deepsea, Comap, Deif | |||||||||
| Circuit Breaker: | ABB/SCHNEIDER | |||||||||
| Physical conditions | ||||||||||
| Ambient temperature | Sea level height | Relative Humidity | ||||||||
| (ºC) | (m) | (%) | ||||||||
Xiamen GTL Power System Co., Ltd established in 2009, is a professional power generation solutions and supplier located in Xiamen of China, we engaged in the research, development, production, sales, and service of industrial diesel generators, Mobile diesel generators, Pump diesel generator, Gas generator, Air Compressor, and Light towers.

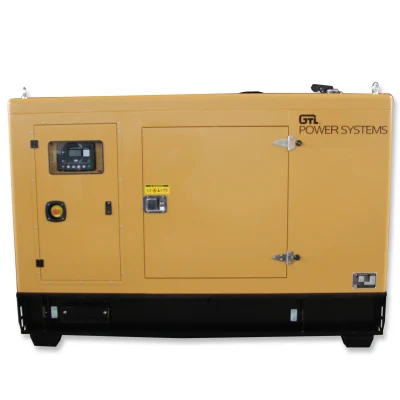

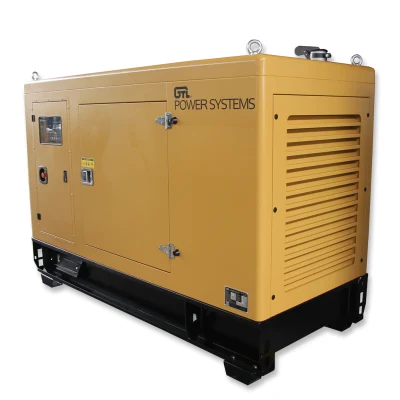

The Generators we provide can be both in Open skid, weatherproof and Soundproof, power range from 5 kW to 4000 kW;
The Gas generator can range from 12 kW to 1500 kW;
The Air Compressor range from 55 CFM to 1600 CFM, maximum 34.5 bar;
The Light towers were designed to offer the widest choice, multiple solutions of lamps with metal halide floodlight and LED lamp to satisfy different application, additionally, it is totally customizable.
