Basic Info.
Model NO.
KDE13000T
Output Type
AC Three Phase
Speed
Speed
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Customization
Logo, Color, Your Requirements
Feature
OEM
Advantages
Portable, Silent, High Fuel Efficiency
Application
Backup Power, Construction Site, Residential
Transport Package
Carton Packaging
Specification
970*560*770mm
Trademark
Sunpor
Origin
Wuxi City, China
HS Code
8502110000
Production Capacity
5000sets /Months
Product Description
WUXI KATM POWER TECHNOLOGY CO.,LTD is a leading manufacturer specializing in the production of diesel engines, diesel water pumps (clean and high-pressure pumps), diesel iron water pumps (iron cast water pumps), open-type diesel generators, and silent diesel generators.
Products are with differnt styles, please inquiry for details or recommendations.

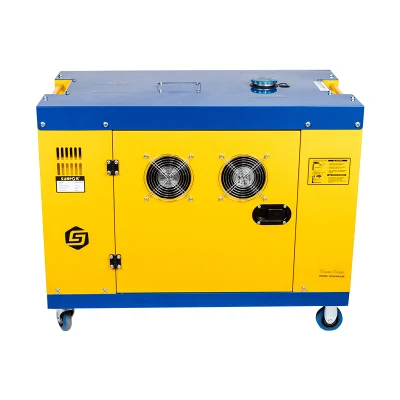

Main Features of Our KDE13000T3
1. Silent: The silent diesel generator set is equipped with a soundproof cover and noise elimination technology.
2. Efficient and reliable: It adopts a high-efficiency diesel engine and is equipped with an advanced control system, which can output power stably and reliably with low energy consumption. At the same time, diesel engines have a long life and relatively low maintenance costs.
3. Flexible mobility: It can be quickly deployed and used and is suitable for many occasions.
4. Environmental protection and Energy saving:
5. Multi-functional applications: Silent diesel generator sets can be applied to various application scenarios, including construction sites, event venues, commercial uses, medical facilities, entertainment venues, etc. Its stable power output can meet the needs of different equipment and facilities.
1. Silent: The silent diesel generator set is equipped with a soundproof cover and noise elimination technology.
2. Efficient and reliable: It adopts a high-efficiency diesel engine and is equipped with an advanced control system, which can output power stably and reliably with low energy consumption. At the same time, diesel engines have a long life and relatively low maintenance costs.
3. Flexible mobility: It can be quickly deployed and used and is suitable for many occasions.
4. Environmental protection and Energy saving:
5. Multi-functional applications: Silent diesel generator sets can be applied to various application scenarios, including construction sites, event venues, commercial uses, medical facilities, entertainment venues, etc. Its stable power output can meet the needs of different equipment and facilities.
Single cylinder Silent Diesel Generators: Powerful, Reliable, and Peaceful Energy Solutions
| Single Cylinder Silent Diesel Generator | ||||||
| Model | KDE3500T | KDE6500T | KDE7500T | KDE8600T | KDE10000T | KDE13000T |
| Rated frequency(Hz) | 50/60Hz | |||||
| Rated output(kW) | 2.5 2.8 | 4.5 4.8 | 4.8 5.0 | 6.0 6.2 | 8 | 9.5 |
| Max.output(kW) | 2.8 3.0 | 5.0 5.2 | 5.2 5.5 | 6.5 7.0 | 8.8 | 10 |
| Rated voltage(V) | 220 or as request | |||||
| Rated current(A) | 11.3 12.7 | 20.5 22.7 | 22.7 23.6 | 27.2 28.2 | 36.9 | 39.1 |
| Rated speed(r/min) | 3000 3600 | 3000 | 3000 | |||
| Phase.No | Single Phase | |||||
| Power factor | 1 | |||||
| Insulation Grade | F | |||||
| Pole Number | 2 | |||||
| Excitation Mode | Self-excitation & constant voltage(AVR) | |||||
| Panel Type | General Panel | |||||
| Receptacle | Two receptacles | |||||
| DC12 output | Optional | |||||
| Overall Dimension(LxWxH)mm | 945x555x700 | 945x555x700 | 945x555x700 | 945x555x700 | 1050x620x730 | 1130X680x800 |
| Dry Weight(kg) | 144 | 150 | 150 | 155 | 195 | 220 |
| Noise Level(7m) | 72 | 72 | 72 | 72 | 72 | 72 |
| Structure type | Silent | |||||
| Engine Model | SP178F | SP186FA | SP188FA | SP192FC | SP1100FE | SP1103F |
| Engine Type | Single Cylinder,vertical,four stroke,direct injection,air cooled | |||||
| Cylinder NO-Bore*Stroke(mm) | 78*62 | 86*72 | 88*75 | 92*75 | 100*85 | 103*85 |
| Displacement(cc) | 296 | 418 | 456 | 498 | 670 | 740 |
| Rated Power[kW(r/min)] | 3.68/3000 4/3600 | 5.7/3000 6.3/3600 | 6.5/3000 7.2/3600 | 8.1/3000 8.7/3600 | 10.5/3000 | 12.5/3000 |
| Compression Ratio | 20:01 | 19:01 | ||||
| Lubrication System | Pressure splashed | |||||
| Starting system | Recoil+Electrical | Electrical | ||||
| Fuel Type | 0#(summer)-10#(winter) -35(chillness) diesel | |||||
| Lube oil brand | CD grade or SAE10W-30,15W-40 | |||||
| Lube capacity (L) | 1.1 | 1.65 | 1.65 | 1.65 | 2 | 3 |
| Fuel Tank Capacity(L) | 16 | 16 | 16 | 16 | 28 | 28 |
