Basic Info.
Model NO.
CDP350KVA
Output Type
AC Three Phase
Speed
Speed
Conditions of Use
Land Use
Usage
Common Units
Landuse Type of Unit
Ordinary
Excitation Mode
Static Exciter
Diesel Generator
UK Perkin 350kVA
OEM Factory
Jiuan
Engine
UK Perkin 2206c-E13tag2
Alternator
Stamford; Marathon;Leroy Somer, Faraday
Control System
ATS Amf
Genset Controller
Smartgen or Deepsea
Transport Package
Standard Export Packing
Specification
UK Perkin Generator 350KVA
Trademark
JIUAN POWER
Origin
China Guangzhou
HS Code
85021200
Production Capacity
1000/Year
Product Description
UK Perkin Diesel Generating Set - Model CDP280KW/350KVA Prime Power
SPECIFICATIONS MAY CHANGE WITHOUT NOTICE!!!
Professional OEM diesel generator factory in Guangzhou
*Diesel Generator open type or silent type (soundproof type)
*Generator Diesel Engine: Cummins,WeiChai, Yangdong, Quanchai, etc.
*Generator with alternator: Stamford, Marathon, Leroy Somer etc.
*Diesel Generator Rated output: 5kVA - 2000kVA
*Rated frequency 50/60 Hz
*Rated voltage 230/400, 220/380, according to customers
*Power factor: 0.8(lag)
*Super Silent type Noise level at 7m ≤ 65DB
*Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
*Starting system: Electric start 12V/24V
*Protection System: High water temperature protection, Engine oil alarm, Over load Protection
*Overfrequency protection, Emergency stop
*Control System: Digital Control Panel; Meter Panel
JIUAN Diesel Generator Set Advantage
*50Hz@1500rpm or 60Hz@1800rpm all are available
*AVR delivers non fluctuating power
*Panel type digital control panel
*12 Volt / 24 Volt electric starter ensures easy starting
*Low oil pressure shut down system
*Low fuel cut out protection
*Low water cut out engine protection
*Enclosed structure ensures quieter operation
*Alternator (Dynamo) excitation mode brushless self excitation
*Three-phase output meets differing requirements
*Four Cylinder, four stroke, water cooled diesel engine
*8 hours running @ full load on a single tank of fuel
*Dual access doors for easy maintenance
*Optional automatic or manual transfer switches available
*ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option

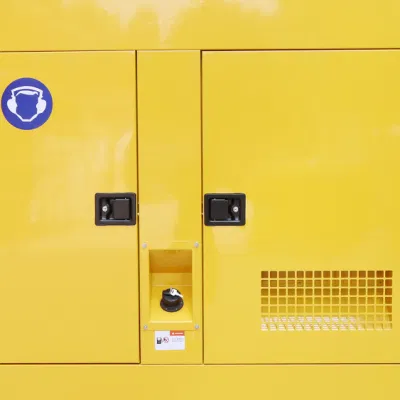

*Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
*Noise Level (65-70dBA @ 7m)
All ratings are at sea level!!!
After-sales Service
*1 year or 1800 running hours subject to the earlier one.
*Contact Sales Manager
Our Diesel Generator Set Production Range is as follows
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. Perkin (UK) 8kVA - 2000kVA
4. 1SUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 40kVA
7. Weichai (China) 8kVA - 150kVA
8. SDEC Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
Terms of Payment
T/T ,Western Union,Cash
| MODEL | CD-P280KW/350kva |
| Powered by Original Uk Perkin Engine | |
| Prime Power (50HZ) | 280KW/350KVA |
| Standby Power (50HZ) | 300kw/375KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current |
| Engine Model | Original Uk Perkin 2206C-E13TAG2 |
| Cylinders | 6 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 130X 157 |
| Compression Ratio | 16.3:1 |
| Speed | 1500rpm |
| Cooling Method | Water - cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 75L |
| Engine Displacement (L) | 12.5 |
| Inspiration (L) | Turbocharged Intercooler |
| Lube Volume (L) | 40L |
| Coolant Volume (L) | 51.4L |
| Noise (Db) | ≤ 80 |
| Alternator Model | LEADTECH OR STAMFORD 444E |
| Alternator Power | 280kw/350KVA |
| Voltage | 220/380 V |
| Protection | IP23 |
| Voltage Regulation | ±4% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 3000 |
| Dimensions (L x W x H) mm | 3400*1400*2000 (SILENT) 4400*1500*2200MM SUPER SILENT |
| Optional | ATS (auto transfer switch) |
| Auto Battery Charger | |
| Base Fuel Tank (for open type) | |
| SUPER SILENT | |
