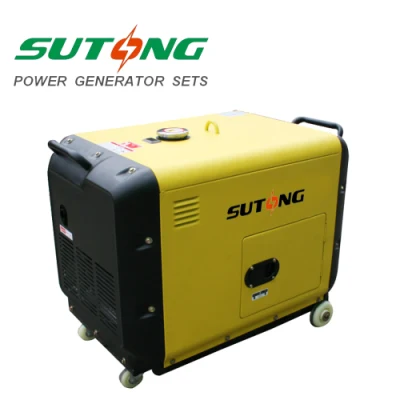

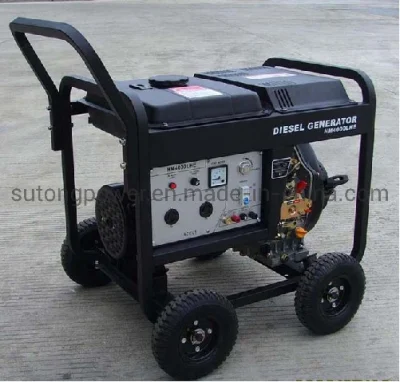

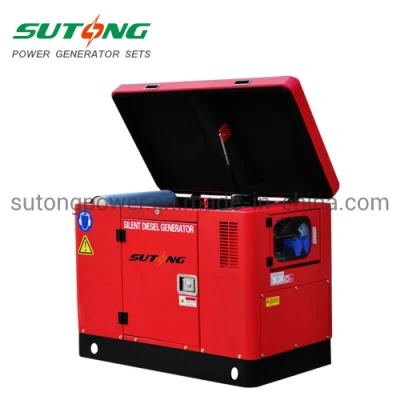

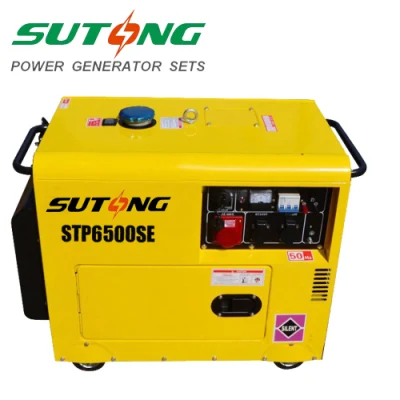

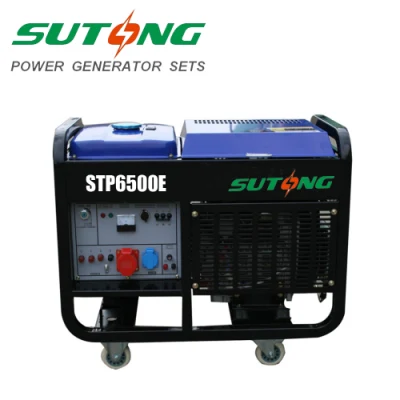

190A Diesel Engine Portable Diesel Generator 50Hz 3000rpm Air Cooled Open/Silent Type Small Power Diesel Generator
Prime Power (kVA/kw): 5kw 8kw 12kw
Fuel Type: Diesel
Frequency: 50/60Hz
Speed: 1500/1800RPM
Alternator type: Brushless
Powered by: Sutong Power
Δ STANDARD CONFIGURATION
1) Powered by Sutongpower air-cooled 4-stroke diesel engine.
2) Compact and portable power for emergency and home standby use.
3) Circuit breaker protects overload operation.
4) AVR alternator provides stable voltage and current.
5) 25L large fuel tank ensure long time continuous running.
6) Standard configuration of voltmeter
Δ TESTING ITEMS
SUTONG POWER provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
Parts faults testing; Fuel tank pressure testing; Bolt tightening torque testing; Painting thickness testing; Voltage bearing and insulation testing; Noise testing; Loading Testing(25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection.
Δ AIR-COOLED DIESEL ENGINE TECHNICAL DATA
| Model | STP3500(SE) | STP6500(SE) | STP7500(SE) | STP6800(SE) | STP6900(SE) |
| AC Frequency | 50Hz / 60Hz | ||||
| AC Voltage | 110V, 120V, 220V, 230V, 240V | ||||
| Max. AC Output | 3.0KW / 3.5KW | 5.0KW / 5.5KW | 6.0KW /7.0KW | 5.0KW / 5.5KW | 5.0KW / 5.5KW |
| Rated AC Output | 2.8KW / 3.0KW | 4.5KW / 5.0KW | 5.5KW / 6.0KW | 4.5KW / 5.0KW | 4.5KW / 5.0KW |
| Fuel Tank Capacity | 12.5L | ||||
| Rated DC Output | 12V/8.3A | ||||
| Engine Type | Air-cooled single cylinder 4-stroke DIESEL | ||||
| Engine Model | DE178F(E) | DE186FA(E) | DE188FA(E) | DE186FA(E) | DE186FA(E) |
| Bore x Stroke | 78 x 62mm | 86 x 72mm | 88 x 75mm | 86 x 72mm | 86 x 72mm |
| Displacement | 296cc | 418cc | 456cc | 418cc | 418cc |
| Engine Output | 6.0hp | 9.0hp | 11.0hp | 9.0hp | 9.0hp |
| Starting System | Electric Start | ||||
| Engine Speed | 3000RPM / 3600RPM | ||||
| Oil Capacity | 0.8L | 1.65L | 1.65L | 1.65L | 1.65L |
| Noise Level @7m away | 68dBA | 71dBA | 71dBA | 69dBA | 65dBA |
| Dimension (L x W x H) | 920 x 540 x 710mm | 920 x 540 x 710mm | 920 x 540 x 710mm | 920 x 550 x 740mm | 920 x 530 x 680mm |
| 20FT Container Loading Quantity | 72units | 72units | 72units | 72units | 72units |
| Net Weight | 150kg | 170kg | 170kg | 175kg | 178kg |
Fujian Sutong Power System Co., Ltd. is committed to the manufacutre, R&D, sales and distribution of diesel generator sets, mobile lighting towers and related spare parts. For decades, we have had rich experience in the design, manufacture and maintenace of diesel generator sets and lighting towers, serving a wide range of industries.
We provide generators and light towers from 5KVA to 4000 kVA with open type, canopy type, silent/soundproof type, trailer type, etc. We can customize generators according to customers' special requirements. Our products are powered by world famous brand engines such as Cummins, Perkins, Caterpillar, Deutz, Isuzu, Kubota, Yanmar, Volvo, FG Wilson, SDEC, Weichai, etc. with world famous brand alternators such as STAMFORD, MARATHON, LEROY SOMER, MECCALTE, etc. and with advantages of lower noise, lower vibration, easy starting, reliable performance.
We have an excellent sales team that has been working in this industry for 8-10 years and is committed to provide you with the most suitable products according to your requirements. Our technical team has been working in the industry for 15 to 30 years that can help you solve problems.
Welcome to contact us at any time!
Δ Aftersales Service
We can provide all the spare parts of our generators quickly.
Guarantee for one year or 1000 hours (accord to whichever reaches first) from ex-factory date. During the warranty period, our company will provide for free the easy damaged spare parts for problems caused by our quality of production or raw materials EXCEPT the damageable spare parts caused by customer's incorrect man-made operation.
After expiration, paid spare parts and maintenance for genset are available.
Δ FAQ (FREQUENCY ASKED QUESTION)
Question: What's your warranty period?
Answer: Our warranty period is 1 year or 1000 running hours. For some special projects, we can extend our warranty period.
Question: Does your generators has global warranty?
Answer: Yes, most of our products like Cummins, Doosan generators enjoy the global warranty service. And the alternators we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so do not worry about the aftersales service.
Question: Do you accept OEM/ODM service?
Answer: Yes, we accept customization service.
Question: What's your payment terms?
Answer: We can accept T/T 30% in advance, and the balance 70% before shipment or L/C at sight, L/C deferred payment terms or west union.
Question: What's your delivery time?
Answer: Our normal delivery time is 15-25 working days. Special customized orders may have longer lead time.
