Basic Info.
Product Description
Guangxi Dingbo Power Equipment Manufacturing Co., Ltd. was established in 2006 and is a Chinese diesel generator brand OEM manufacturer that integrates the design, supply, commissioning, and maintenance of diesel generators. We have a professional technical research and development team, a modern production base, advanced manufacturing technology, a sound quality management system, and a sound after-sales service guarantee. Our service network is spread throughout the country, providing you with a one-stop service for the design, supply, commissioning, and maintenance of Cummins diesel generator sets.

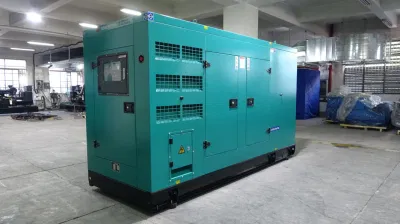

Technical Parameters of 100kVA 80kW Diesel Generator Set
| Manufacturer | Guangxi Dingbo Power Equipment Manufacturing Co.,Ltd |
| Genset model | DB-80GF |
| Type | Silent type |
| Prime Power: | 80kW(100kVA) |
| Standby Power: | 88kW(100kVA) |
| Rated current: | 144A |
| Rated voltage: | 400V |
| Rated speed/frequency | 1500rpm/50Hz |
| Power factor: | 0.8lag |
| Phase: | 3 phase 4 wire |
| MCB breaker | 250Amps |
| ATS | 250Amps, 4P (mounted on diesel generator), optional |
| Free-maintenance battery | 2pcs x 185AH |
| Base bottom fuel tank | 280litres |
| Noise level | 75dBA at 7m |
| Dimensions: | 3300mm*1240mm*1790mm( L*W*H) |
| Gross and net weight: | 1800kg |
| Includes: muffler, silent canopy, 280litres base bottom fuel tank, 250Amps ATS,24V DC maintenance free battery(2pcs x 185AH),battery cable, battery charger,mains circuit breaker, shock absorber pad, factory test report, random data set, etc. | |
Technical Parameters of Diesel Engine
| Manufacturer: | Cummins |
| Engine model | 6BT5.9-G1 |
| Prime power: | 86KW |
| Standby power: | 92KW |
| Frequency/Speed: | 50Hz/1500RPM |
| Cylinders no. & Type: | 6, In line, 4 stroke, diesel engine, water-cooled |
| Aspiration: | Turbocharged |
| Displacement: | 5.9L |
| Compression ratio | 17.3:1 |
| Governor | Electronic speed control |
| Bore x Stroke: | 102 x 120mm |
| Start mode: | Electric start |
| Starter motor: | 24V DC |
| Type Injection System: | Direct injection |
| Fuel consumption at standby power | 100%:26.9L/h |
| Fuel consumption(prime power): | 100%: 24.2L/h 75%:18.2L/h 50%:12.5L/h 25%:7.3L/h |
| Lube System Capacity | 16.4L |
| Coolant capacity | 7.9L |
Technical Parameters of Alternator
| Prime power | 80kW(100kVA) |
| Rated Voltage: | 400V |
| Frequency/Speed: | 50Hz/1500RPM |
| Wire connecting method | Y type, 3 phase 4 wire |
| Power Factor: | 0.8lag |
| Efficiency: | 95% |
| Regulator: | AVR |
| Rotor: | Single/double bearing |
| Exciter type: | Brushless self excitation |
| Recovery time(Tr) | 1s |
| Waveform : TIF | <50 |
| Waveform : THF | <2% |
| Winding Pitch | 2/3 |
| Voltage regulation: | ± 1.0 % |
| Protection: | IP23 |
| Insulation class | H |
| Temperature rise grade: | H |
| Duty | Continuous |
| Overload | 110% rated load for 1 hour per 12 hours |
Brief Introduction of Dingbo Power
Guangxi Dingbo Power Equipment Manufacturing Co.,Ltd was founded in 2006. As one of the leading diesel generator manufacturer in China. Our company covers an area of 2,200 square meter and with the existing staff of more than 100 people, including 30 professional technical personnel and 70 senior technical personnel. It has 6 subsidiaries (plants) and has set up 64 sales service department all over the country. We are the only one who can provide customers with one-stop service of design, supply, commissioning and maintenance. We believe that we can build a first-class enterprise and manufacture first-class products.
Our company has been an accredited manufacture who obtained the authentication of National Inspection and Supervision Center of diesel Generating Sets since 2006, and passed the CE Certificate. We have been certified for the three certification systems of ISO 9001-2015 Quality, ISO 14001-2015 Environment and ISO45001 occupation health & safety management.
In addition, we are authorized self-import and export qualifications
Our company has advanced detection equipment, modern production technology, professional manufacturing technology and perfect quality management system with a strong R&D and technological strength. We can provide a variety of specifications common from 16KW to 3000KW, automated, four-protection, automatic, automatic cut over, low noise and mobile and so on with high quality and low energy consumption power set that can satisfy the customer all electric power demand. We can also satisfy the user different demands of different voltage, frequency and multi-unit parallel grid power supply system.
Our company depends upon high quality product, good service and good prestige, and we will continue spirit of developing "solidify, work hard, expand, innovation". we will run flexible sales strategy and create new brilliancy together with you. Relying on the company's advantage and strength, our company gradually move towards economies of scale and expand global market.
Our company has a consciousness in advance, in the prime of life, service familiarity management troop, they establish one modern enterprise's goal to embark, in line with "high beginning, high tech, service pursue goal superiority", collects positively absorbs the domestic and foreign vanguard technologies, advanced product, unceasingly to product renewal. Our company has built broad cooperation with Sweden Volvo, USA/Chongqing Cummins, British Perkins, German Deutz, South Korea Daewoo, German MTU and so many other companies and become (OEM) component supplier and the technology center which lays the solid foundation for the development international market.
The tenet of our company's business is "Pursuing super excellence, Continuous Innovation". Our goal is to create the world-famous brand. We will try our best to achieve it with co-partners all over the world.
Certificate
Why Choose Us?
At present, thousands of Dingbo Power generator sets are being reliably operated in fields like telecommunications, banking, security industry, airports, hospital, transportation, oil fields, industry and the clients have been distributed around the globe. All staff in Dingbo Power are sparing no efforts to make the Startlight brand a symbol for reliable quality, advanced technology, first-class performance, an environment friend, and long operating life.
We believe that the consideration is as important as innovative technology. The leading product is always based on the leading supporting services. We shall follow the philosophy to meet customer's demands and offer customers the genuine spare parts, technical consulting and installation guide, make equipment commissioning free of charge, rebuild generation set and train the person.
Services:
Before service
Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.
After sale service
- free guide to install and debugging.
- Free training and consult.
- Guiding how to protect your equipment.
- We will set up clients' document, tracking service, regular inspection, maintenance for life.
- We offers pure perennial spare parts and maintenance engineers will be ready to provide.
★ FAQ
Q.:What is your warranty period?
A.:Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.
Q.:Does your generator have global warranty?
A.:Yes, We supply the warranty.Also most of our products like Deutz,Cummins, Volvo, SDEC, Yuchai,Weichai etc.power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.
Q.:Can you accept OEM?
A.:Yes, we can accept OEM.
Q.:What is your payment terms?
A.:We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order,we can do something on payment item.
Q.:What is your delivery time?
A.:Our normal delivery time is 1 to 2 weeks. But if your order is using special engine and alternator, then the delivery time is longer.
Latest Catalogue
We supply multiple brands of generator set, such as: Cummins, Volvo, Deutz, MTU, Ricardo, Perkins, Shangchai, Weichai, Yuchai etc. The style of genset is varied, such as: open type, container genset, trailer genset, mobile trailer genset, soundproof genset, low noise genset, and silent genset, etc. Besides, we also supply design and construction of the noise reduction project up to the customer's requirements.
