Basic Info.
Model NO.
HF-150CS
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
Speed
Conditions of Use
Land Use
Usage
Common Units
Landuse Type of Unit
Low Noise Automation Type
Excitation Mode
AC Rotating Exciter
Color
Can Be Customized
Engine
Power Hf
Alternator
Phf
Prime Power Kw
120kw
Prime Power kVA
144kVA
Transport Package
Export Standard Packing
Specification
can be customized
Trademark
Power HF
Origin
Weifang City
HS Code
8502110000
Production Capacity
5000/Year
Packaging & Delivery
Package Size
245.00cm * 70.00cm * 145.00cm
Package Gross Weight
1270.000kg
Product Description

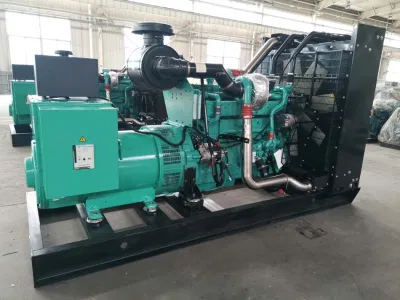

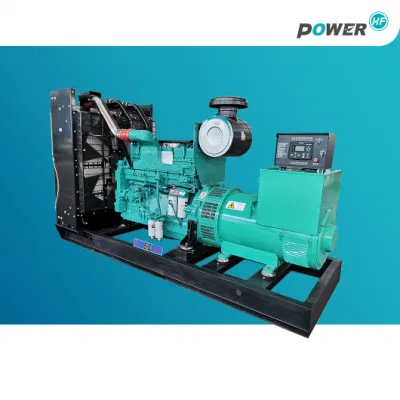

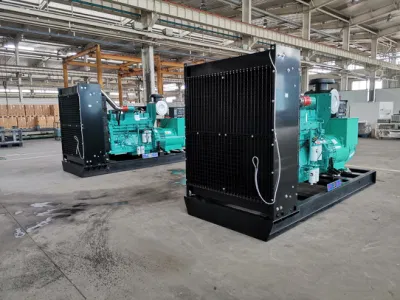

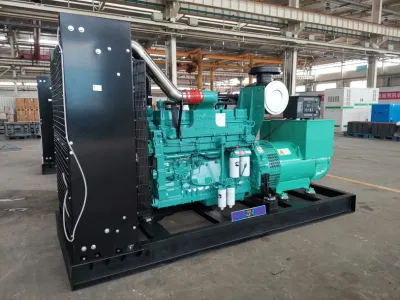

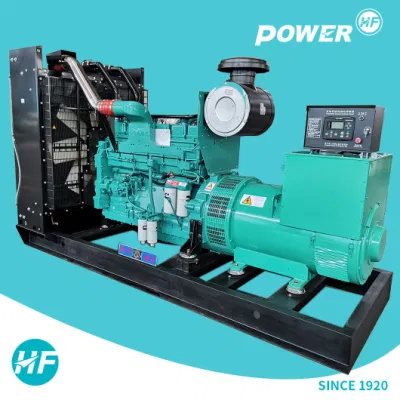

Power Generation Open Type Silent Type Diesel Generator for Sale 50kw 60kva 75kva 80kva 100kva 125kva 150kva 160kva 200kva Diesel Generator
| Engine Spec | |
| Engine Model | 6BTAA5.9-G2 |
| Number of Cylinders | 6 cylinders, Vertical in line |
| Cycle | 4 stroke |
| Aspiration | Turbocharged and after water cooled |
| Bore×Stroke | 102mm x120mm |
| Displacement | 5.9L |
| Compression ratio | 17.5:1 |
| Prime Power/Speed | 150kva / 1500rpm |
| Standby Power/Speed | 130KW / 1500rpm |
| Fuel Consumption at 100% Load | 209g/kw.L |

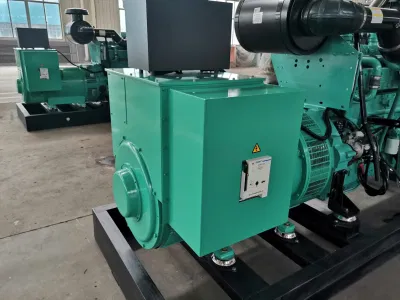

| Alternator Spec | |
| Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
| Prime power | 150kva |
| Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
| Exciter type | Single bearing, Brushless, Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Protection Grade | IP23 |
| Phase | Three phases or Single phase |
Control system
Control panel: DeepSea/ComAp/SmartGen
Relay brand: Siemens APT
Connect: Engine+Alternator-Terminal-Control panel
Key+Emergency stop+Light: Famous brand, perfect quality
Relay brand: Siemens APT
Connect: Engine+Alternator-Terminal-Control panel
Key+Emergency stop+Light: Famous brand, perfect quality
Engine oil discharge fuel pump
Engine oil discharge fuel pump, it is easy and convenient for engine oil maintenance
| Diesel Generator Sets Data Sheet | ||||||||||
| S/N | Ph | Power | Engine | Alternator | Genset Dimension & Weight | |||||
| KVA | KW | Model | power | Model | L | W | H | KG | ||
| (Kw) | (mm) | (mm) | (mm) | |||||||
| HF-16RX | 1 | 22 | 17.6 | R3105D | 22 | PHFD184G | 1600 | 580 | 1060 | 600 |
| HF-24RX | 1 | 33 | 26 | R3105ZD | 32 | PHFD224D | 1600 | 580 | 1060 | 650 |
| HF-30KX | 1 | 37.5 | 30 | K4102D1 | 33 | PHFD184G | 1750 | 635 | 1200 | 650 |
| HF-32KX | 1 | 44 | 35 | K4100ZD1 | 41 | PHFD224E | 1750 | 635 | 1200 | 750 |
| HF-40RX | 1 | 55 | 44 | R4105ZD1-1 | 56 | PHFD224F | 1890 | 690 | 1150 | 880 |
| HF-50RX | 1 | 69 | 55 | R4105ZD1-1 | 56 | PHF274C | 1850 | 650 | 1400 | 870 |
| HF-15KX | 3 | 21 | 17 | XR2105D | 17 | PHF184ES | 1500 | 700 | 1110 | 550 |
| HF-20KX | 3 | 28 | 22 | 495D10-1 | 26.5 | PHF184EF | 1600 | 700 | 1110 | 600 |
| HF-24KX | 3 | 33. | 26 | K4100D-1 | 31 | PHF184G | 1600 | 700 | 1200 | 600 |
| HF-32KX | 3 | 44 | 35 | K4100ZD1 | 41 | PHF184J | 1700 | 635 | 1200 | 700 |
| HF-30RX | 3 | 41 | 33 | K4102D1-1 | 33 | PHF184H | 1650 | 660 | 1050 | 700 |
| HF-40RX | 3 | 55 | 44 | R4105ZD1-1 | 56 | PHF224D | 1840 | 690 | 1150 | 830 |
| HF-50RX | 3 | 69 | 55 | R4105ZD1-1 | 75 | PHF224E | 1850 | 650 | 1400 | 870 |
| HF-64RX | 3 | 88 | 70 | R4105IZLD-1 | 75 | PHF224G | 1950 | 670 | 1140 | 970 |
| HF-75RX | 3 | 103 | 83 | R6105ZD1-1 | 84 | PHF274CS | 2300 | 680 | 1400 | 1100 |
| HF-80RX | 3 | 110 | 88 | R6105ZLD-1 | 84 | PHF274C | 2300 | 680 | 1400 | 1130 |
| HF-90RX | 3 | 124 | 99 | R6105ZLD-1 | 100 | PHF274D | 2300 | 680 | 1400 | 1160 |
| HF-100RX | 3 | 138 | 110 | R6105AZLD-1 | 110 | PHF274DS | 2340 | 700 | 1400 | 1200 |
| HF-120RX | 3 | 165 | 132 | R6105IZLD7 | 132 | PHF274FS | 2450 | 700 | 1450 | 1270 |
| HFJA-16RX | 3 | 22 | 17.6 | R3105D | 22 | PHF184FS | 2000 | 1050 | 1300 | 860 |
| HFJA-24RX | 3 | 33 | 26.4 | R3105ZD | 32 | PHF184G | 2000 | 1050 | 1300 | 900 |
| HFJA-30KX | 3 | 37.5 | 30 | K4102D1 | 33 | PHF184H | 2100 | 1050 | 1200 | 900 |
| HFJA-32KX | 3 | 44 | 35 | K4100D-1 | 41 | PHF184J | 2100 | 1050 | 1200 | 950 |
| HFJA-40RX | 3 | 55 | 44 | R4110D40-1 | 49 | PHF224D | 2300 | 1050 | 1200 | 1100 |
| HFJA-50RX | 3 | 68.75 | 55 | R4105ZD1-1 | 56 | PHF224E | 2300 | 1050 | 1500 | 1200 |
| HFJA-64RX | 3 | 88 | 70 | R4105IZLD-1 | 75 | PHF224G | 2500 | 1050 | 1300 | 1270 |
| HFJA-75RX | 3 | 103.2 | 82.5 | R6105ZD1-1 | 84 | PHF274CS | 2800 | 1050 | 1500 | 1400 |
| HFJA-80RX | 3 | 110 | 88 | R610571D-1 | 100 | PHF274C | 2800 | 1050 | 1500 | 1500 |
| HFJA-90RX | 3 | 123.8 | 99 | R6105ZLD-1 | 100 | PHF274D | 2800 | 1050 | 1500 | 1600 |
| HFJA-100RX | 3 | 137.5 | 110 | R6105AZLD-1 | 110 | PHF274DS | 2900 | 1050 | 1600 | 1500 |
| HFJA-120RX | 3 | 165 | 144 | R6105IZLD7 | 132 | PHF274FS | 2900 | 1050 | 1600 | 1600 |
| HF-160WX | 3 | 220 | 176 | WP10D200E200 | 182 | PHFD274H | 2668 | 1165 | 1507 | 1891 |
| HF-180WX | 3 | 247.5 | 198 | WP10D238E200 | 216 | PHFD274J | 2668 | 1165 | 1507 | 2061 |
| HF-220WX | 3 | 302.5 | 242 | WP13D320E200 | 291 | PHFD274D | 2980 | 1170 | 1780 | 2350 |
| HF-500WX | 3 | 687.5 | 550 | 6M33D633E200 | 575 | PHFD5FS | 3850 | 1680 | 2100 | 5200 |
| HF-800WX | 3 | 1100 | 880 | 12M26D968E200 | 880 | PHFD6F | 4800 | 2200 | 2450 | 8400 |
| HF-1000WX | 3 | 1375 | 1100 | 12M33D1210E200 | 1100 | PHFD7E | 4800 | 2200 | 2450 | 8500 |
| HF-1200WX | 3 | 1650 | 1320 | 12M33D1450E310 | 1350 | PHFD7F | 4800 | 2200 | 2450 | 8600 |
| HF-1600WX | 3 | 2200 | 1760 | 16M33D1980E310 | 1800 | PHFD7H | 6500 | 2750 | 3058 | 16000 |
| HF-2000WX | 3 | 2750 | 2200 | 12M55D2450E310 | 2200 | PHFD7K | 6600 | 2680 | 2980 | 22000 |
Why Choose us?
Power HF Co., Ltd was founded in 1920. Now it enjoys the history of 103 years.It was one of the earliest diesel engine manufacturers in China and it was honored as Number One Manufacturer North of the Yangtze River at that time.
Committed to the research and development,manufacturing and sales of diesel engines,core component and intelligent generator sets(from 8KVA-3000KVA),as well as comprehensive operation and maintenance services for power facilities such as communication base generator sets.Annual production capacity of engine and spares exceed 120,000 units and 400,000 sets respectively.
We have 5 production bases in China, 6 operation centers in the world,600+ global service providers, 25,000+ management base stations and 5000+ employees worldwide.
Sticking to the professional and international development direction, Power HF Co., Ltd. has established a coordinated development pattern consisting of Manufacturing + Services.
Its comprehensive operation and maintenance department of communication base station power supply facilities has successfully carried out efficient 7x24 hour operation and maintenance services in India, Myanmar and other countries.
As a century-old enterprise, Power HF co., Ltd. will continue to provide first-class products and services for more clients of many different industries such as global heavy trucks, agricultural equipment, construction machinery, mobile communication, stationary power, electric power and ships.
Power HF Co., Ltd was founded in 1920. Now it enjoys the history of 103 years.It was one of the earliest diesel engine manufacturers in China and it was honored as Number One Manufacturer North of the Yangtze River at that time.
Committed to the research and development,manufacturing and sales of diesel engines,core component and intelligent generator sets(from 8KVA-3000KVA),as well as comprehensive operation and maintenance services for power facilities such as communication base generator sets.Annual production capacity of engine and spares exceed 120,000 units and 400,000 sets respectively.
We have 5 production bases in China, 6 operation centers in the world,600+ global service providers, 25,000+ management base stations and 5000+ employees worldwide.
Sticking to the professional and international development direction, Power HF Co., Ltd. has established a coordinated development pattern consisting of Manufacturing + Services.
Its comprehensive operation and maintenance department of communication base station power supply facilities has successfully carried out efficient 7x24 hour operation and maintenance services in India, Myanmar and other countries.
As a century-old enterprise, Power HF co., Ltd. will continue to provide first-class products and services for more clients of many different industries such as global heavy trucks, agricultural equipment, construction machinery, mobile communication, stationary power, electric power and ships.
1.Q: What are your terms of payment?
A: We accept telegraphic transfer (bank telegraphic transfer), letter of credit, etc.
2. Q: What are your packing conditions?
A: Sea worthy.
3. Q: What is the production cycle (lead time)?
A: Usually around 7-30 days;
4. Q: Is there a warranty and how long is the warranty period?
A: 1-3year from the date of shipping,or1000-5000running hours,whichever comes first.
5. Q:Are you trading company or manufacture?
A:We are factory and do OEM/ODM, etc.
A:We are factory and do OEM/ODM, etc.
