Basic Info.
Model NO.
BS-DS
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Low Noise
Excitation Mode
AC Rotating Exciter
Engine
Doosan
Alternator
Stamford
Controller
Smartgen, Deepsea...
Starting Method
Electric Start
Power
8kw - 32kw
ATS
Optional
Color
as Per Request
Frequency
50Hz/60Hz
Voltage
400V 380V
Transport Package
Packed in Plywood Cases or Wooden Cases or Foam, E
Specification
As for power
Trademark
BOSSPOWER
Origin
China
HS Code
85021100
Production Capacity
100 Sets / Month
Product Description
| PRODUCT DESCRIPTION |
| Frequency: 50HZ;Rotating speed: 1500Rpm; | |||||
| Model | Power(KW) | Capacity(KVA) | Rated current(A) | Engine Model | Copy Stamford Type |
| BS-Q10 | 8 | 10 | 14.4 | QC380D | BS164B |
| BS-Q10 | 8 | 10 | 14.4 | QC385D | BS164B |
| BS-Q14 | 10.8 | 13.5 | 19.5 | QC480D | BS164C |
| BS-Q16 | 12.8 | 16 | 23 | N485D | BS164D |
| BS-Q20 | 16 | 20 | 28.9 | QC490D | BS184E |
| BS-Q25 | 20 | 25 | 36 | QC498D | BS184F |
| BS-Q31 | 25 | 31 | 45 | QC4102D | BS184G |
| BS-Q38 | 30 | 38 | 54 | QC4105D | BS184H |
| Frequency: 60HZ;Rotating speed: 1800Rpm; | |||||
| Model | Power(KW) | Capacity(KVA) | Rated current(A) | Engine Model | Copy Stamford Type |
| BS-Q13 | 10 | 13 | 18 | QC385D | 164B |
| BS-Q17 | 14 | 17 | 25.3 | QC480D | 164C |
| BS-Q20 | 16 | 20 | 28.9 | N485D | 164D |
| BS-Q25 | 20 | 25 | 36 | QC490D | 184E |
| BS-Q30 | 24 | 30 | 43.3 | QC498D | 184E |
| BS-Q40 | 32 | 40 | 57.7 | QC4102D | 184G |

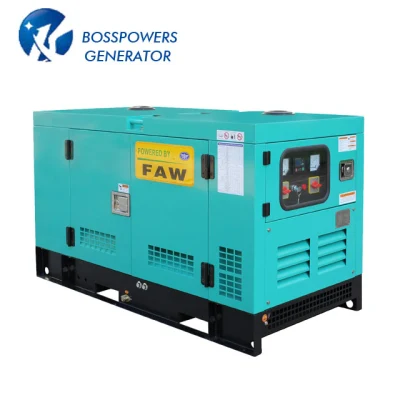

| PRODUCT SHOWS |
| PRODUCT ADVANTAGE |
(1)The silent canopy we use cold-rolled sheet, all positions are stronger.
(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the
painting will not change color even if placed outside for five years.
(3)Canopy color painted by customer's requirement.
(4)Strict test including 50% load,75% load,100% load and 110% Load .
(5)Forklift mouth in base frame for easy loading and discharging.
(6)Logo made by customer's requirement if order quantity ≥10units or a full container.
| FAQ |
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
